Footprint 1655×700×1535 mmDTF Series

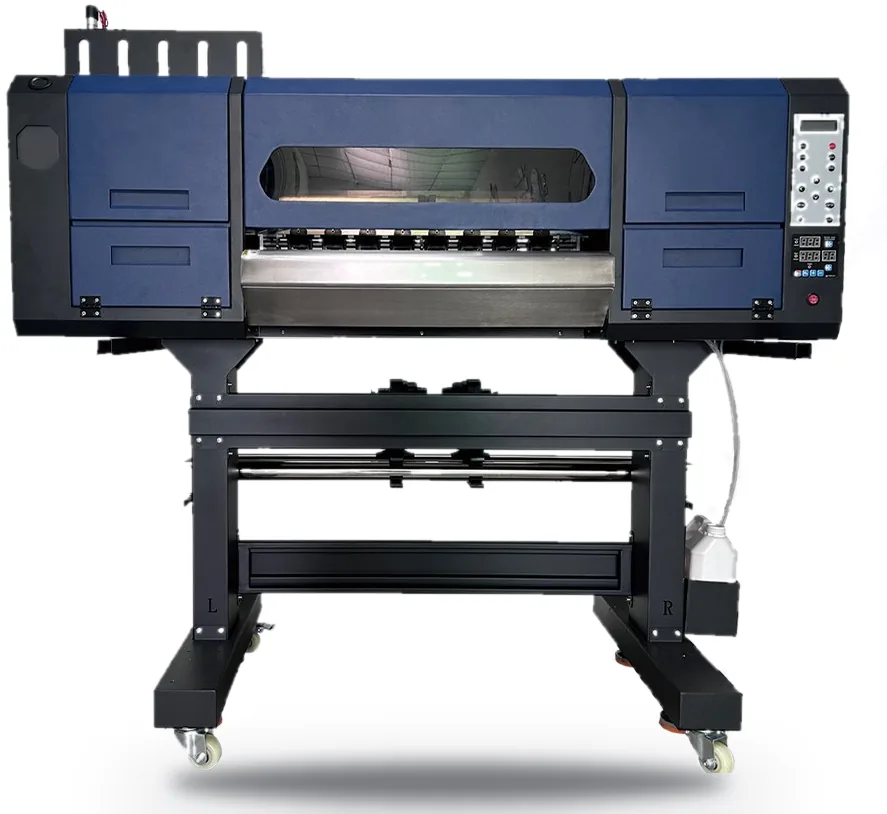

IM-A6504Direct-to-Film Printer
A 600 mm roll-to-roll DTF printer running four print heads at up to 28 m²/h. Full-colour film transfers in five to nine colours for apparel, bags and soft furnishings.
4
Print Heads
600mm
Print Width
28m²/h
Max Speed
5–9
Colour Channels
Specifications
- Ink type
- DTF Ink
- Print heads
- 4 × i3200-A1 / i1600
- Print width
- 600 mm
- Print speed
- Up to 28 m²/h (4-pass)
- Colour channels
- 5–9 colours
- Print media
- PET Film
- Temp. / Humidity
- 20–30 °C / 45–65%
- RIP software
- Maintop · PP · RIIN · Cadlink
- Interface
- Gigabit Network
- Power
- 220 V · 750 W
- Dimensions
- 1655×700×1535 mm
- Weight
- 170 kg
Options & bundles
Head configuration, powder handling and consumables can be bundled to suit your volume. Tell us your workload and we'll configure the right IM-A6504.
Enquire on WhatsAppEngineered detail
Linear Guide Rail
Trolley Anti-Collision
Industrial Platen
Ink Stack Motor
Auxiliary Equipment
A1 Powder Shaker
Extended Powder Shaker
Ink Shaking Machine
Applications
What you can produce.
T-Shirts
Caps
Bags
Sportswear
Totes
ApronsMore in DTF
