Footprint 2774×740×1460 mmSublimation Series

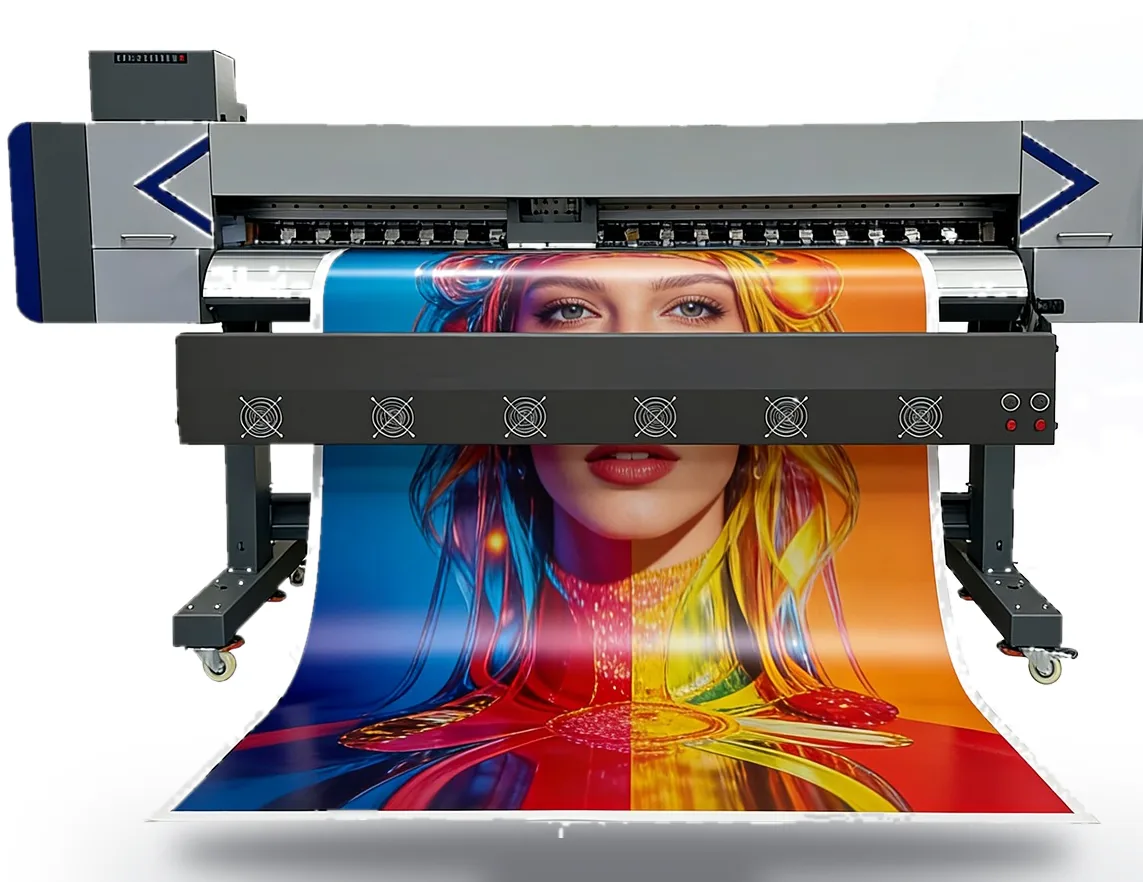

IM-1808Sublimation / Thermal-Transfer Printer
A 1900 mm wide-format sublimation and thermal-transfer printer with single or dual Epson heads. Infrared drying and pre/post heaters handle transfer paper, banner flex, vinyl and photo media.
1900mm
Print Width
1–2
Epson Heads
1.5–8mm
Media Thickness
2000W
Power Draw
Specifications
- Ink type
- Thermal-transfer, solvent & UV ink
- Print heads
- 1–2 × Epson i1600 / i3200
- Print width
- 1900 mm
- Media thickness
- 1.5–8 mm, adjustable
- Media heater
- Infrared drying + pre/post heaters
- Operating temperature
- 15–28 °C
- Operating humidity
- 40–80% RH
- RIP software
- Maintop · PP · RIIN · Cadlink
- Power
- 220 V · 2000 W
- Dimensions
- 2774×740×1460 mm
Highlights
- Wide media adaptability
- Vivid, saturated colour
- Infrared pre/post drying
- Single or dual Epson heads
Options & bundles
Head configuration, powder handling and consumables can be bundled to suit your volume. Tell us your workload and we'll configure the right IM-1808.
Enquire on WhatsAppEngineered detail
Low-Ink Alert
Industrial Platen
Trolley Anti-Collision
Ink Stack Motor
Applications
What you can produce.
More in Equipment
Related machines
Supporting EquipmentPre-Treatment Spray Unit

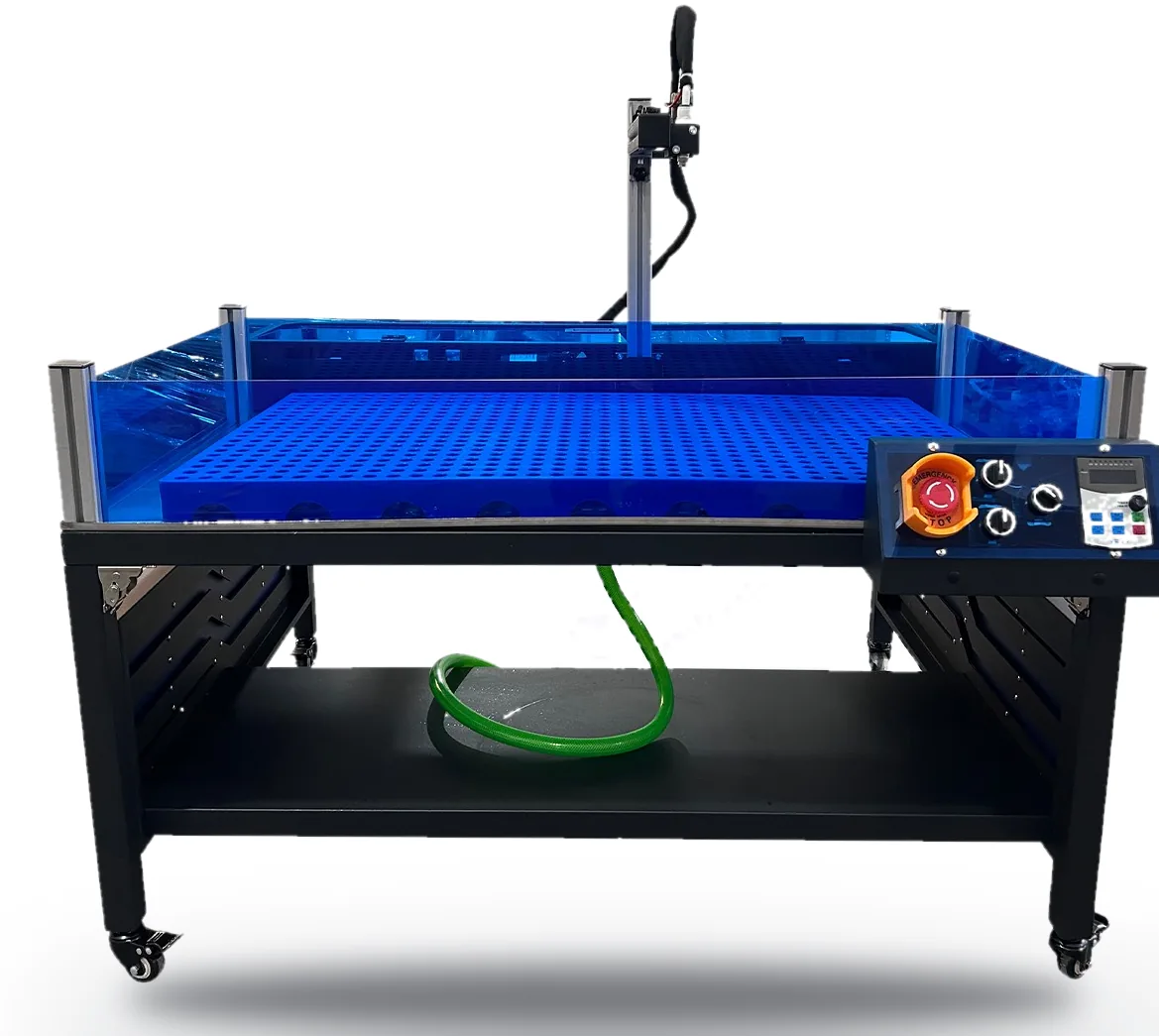

IM-Spray
A supporting spray station for DTF and textile pre-treatment. Its atomising nozzle lays an even, ultra-thin coating across a 600 × 900 mm work area.
Coating Area
Supporting EquipmentInk Shaking Machine

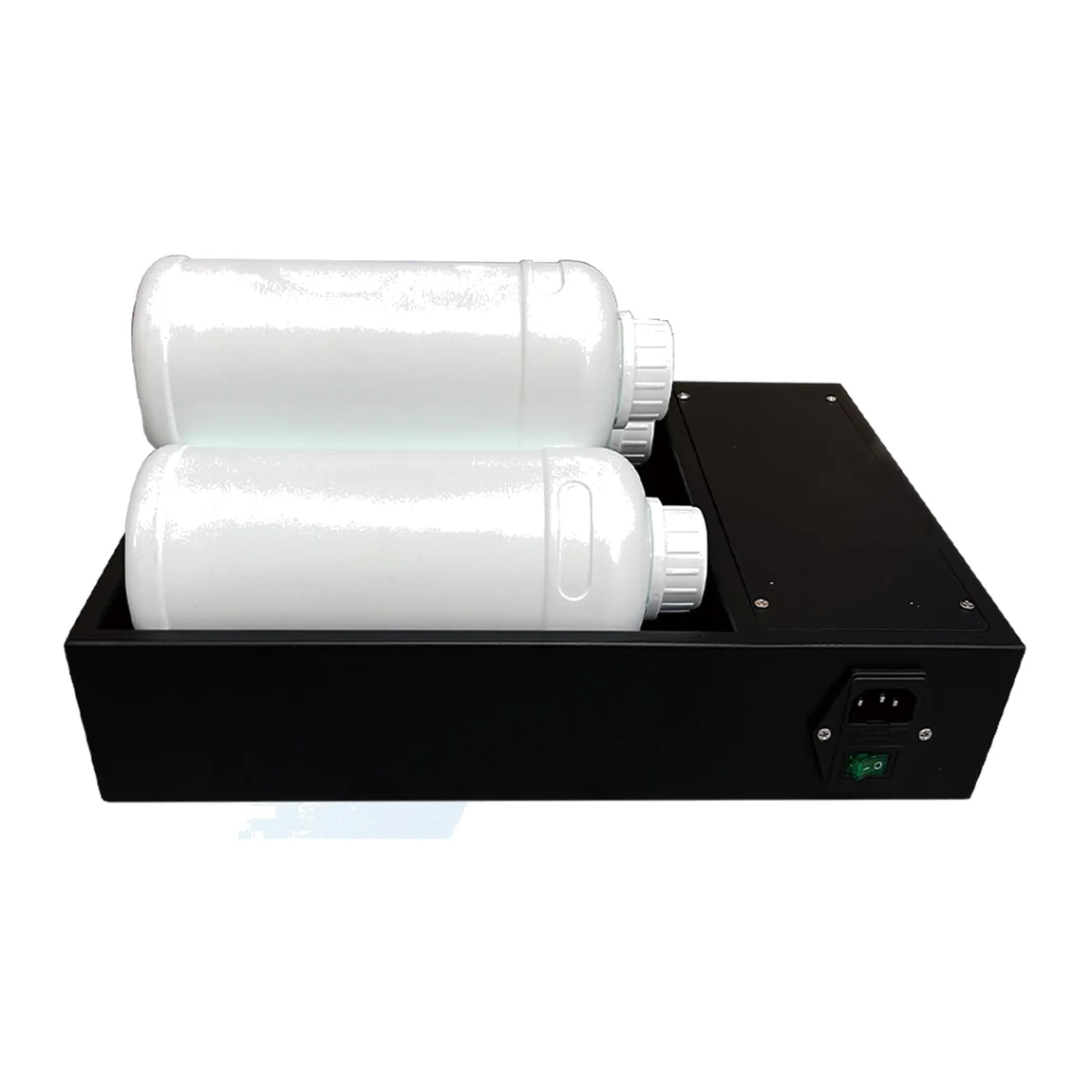

IM-Ink-Shaker
A rotary ink-shaking station that keeps white heat-transfer ink evenly mixed and bubble-free. Quiet, hands-free and gentle on printhead nozzles between print runs.
Ink Bay
Supporting EquipmentFume Purifier

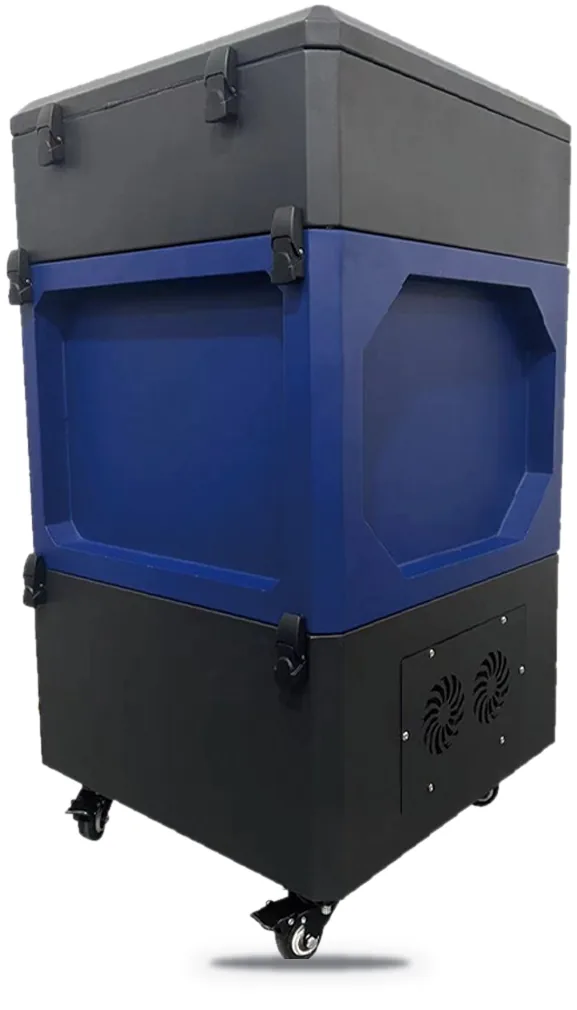

IM-Purifier
