Footprint 1800×700×1550 mmUV Series

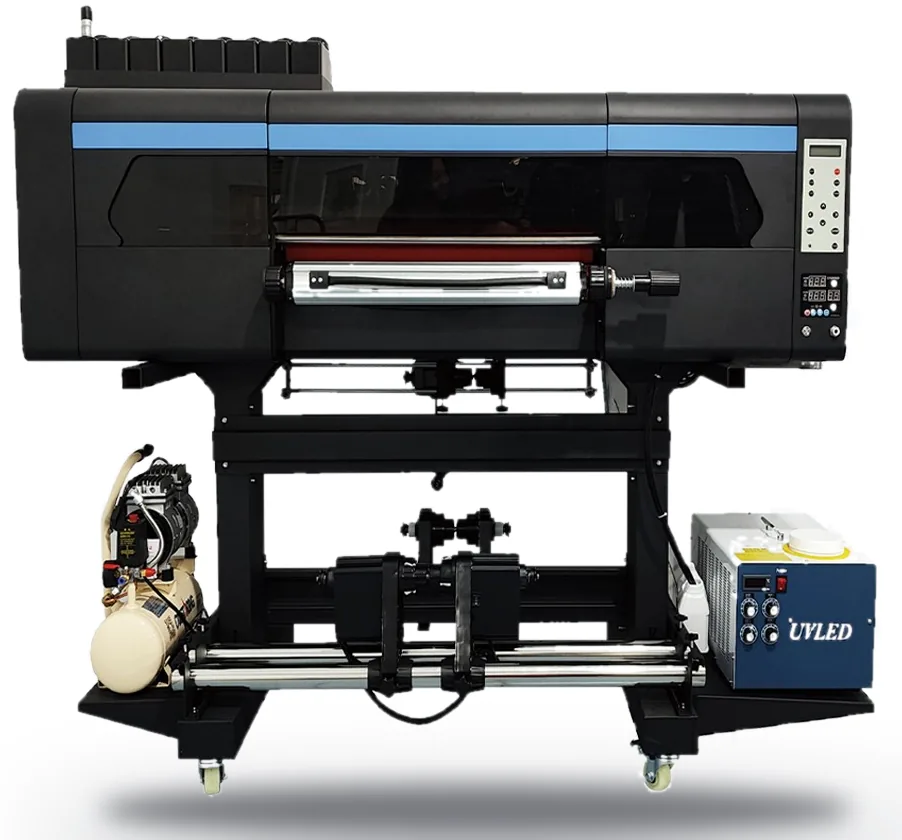

IM-U6503UV DTF Printer
A four-head UV DTF printer running Epson i3200 heads for high-speed AB-film crystal labels, 3D-TPU and imitation embroidery. With optional gold or silver foil stamping for premium finishes.
4
Print Heads
600mm
Print Width
6mm
Print Height
8m²/h
Max Speed
Specifications
- Ink type
- UV Ink
- Print heads
- 4 × i3200-U
- Print width
- 600 mm
- Print height
- Up to 6 mm
- Print speed
- Up to 8 m²/h (6-pass)
- Print media
- UV special A/B film
- Ink volume
- 1.5 L / bottle
- RIP software
- Maintop · PP · RIIN · Cadlink
- Interface
- Gigabit Network
- Temp · Humidity
- 15–30 °C · 40–80% RH
- Power
- 220 V · 2300 W
- Size · Weight
- 1800×700×1550 mm, 242 kg
Materials
- Glass
- Ceramics
- Wood & Craft
- Paper & Card
- Stickers & Labels
- Plastic
Options & bundles
Head configuration, powder handling and consumables can be bundled to suit your volume. Tell us your workload and we'll configure the right IM-U6503.
Enquire on WhatsAppEngineered detail
Ink Cartridge System
Air Compressor
UV Cooling Tank
Linear Guide Rail
Applications
What you can produce.
Phone Cases
Packaging
Leather
Craft & Decor
Ceramics
Metal & WoodMore in UV
